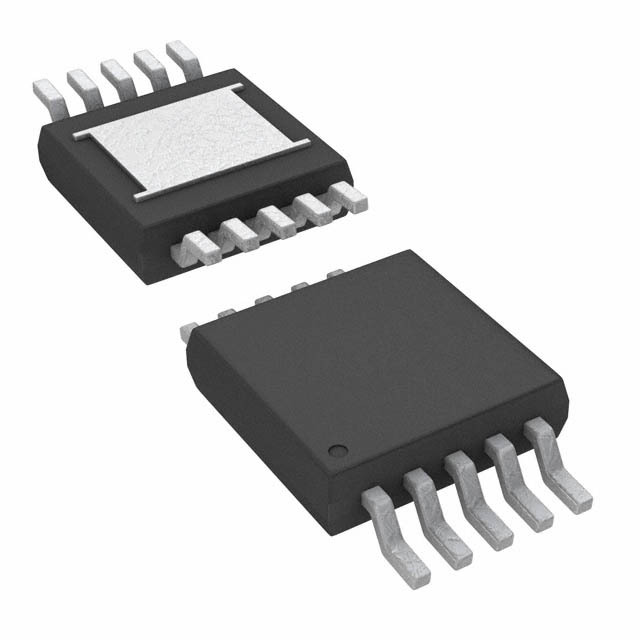

LTC7001IMSE#PBF

SKU: 112070

Manufacturer: Analog Devices

Driver 1-OUT High Side 10-Pin MSOP EP Tube

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Driver Type	High Side
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	90(Typ)
Maximum Fall Time (ns)	40(Typ)
Maximum Propagation Delay Time (ns)	70
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	0
Operating Supply Voltage-Max (V)	135
Maximum Supply Current (mA)	0.05
Typical Input Low Threshold Voltage (V)	1.6
Typical Input High Threshold Voltage (V)	2
Output Resistance (Ohm)	2.2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Special Features	Short Circuit Protection
Latch-Up Proof	No
Packing Method	Tube
Original Package	MSOP EP
Pin Count	10
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
