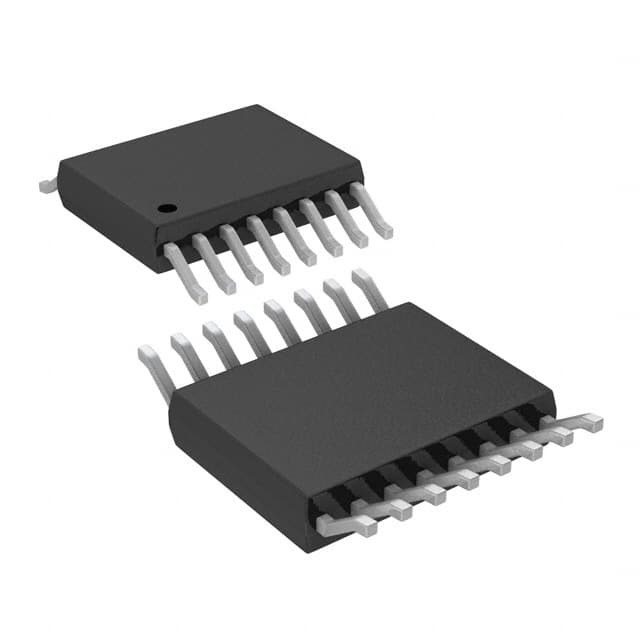

LTC6909HMS#TRPBF

SKU: 112063

Manufacturer: Analog Devices

Spread Spectrum Silicon Oscillator - 0.0125MHz to 6.67MHz CMOS Automotive 16-Pin MSOP T/R

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Spread Spectrum Silicon Oscillator
Number of Outputs	8
Manual Reset	No
User Programming Method	Resistor
Standard Frequency Range (MHz)	0.0125 to 6.67
Maximum Frequency Accuracy	±4.5%
Typical Frequency Temperature Coefficient	±0.004%/°C
Typical Frequency Line Regulation	0.4%/V
Maximum Symmetry (%)	55
Output Level	CMOS
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	2.7
Maximum Cycle to Cycle Jitter	0.2%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Standard Package Method	MSOP
Pin Count	16
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	16
