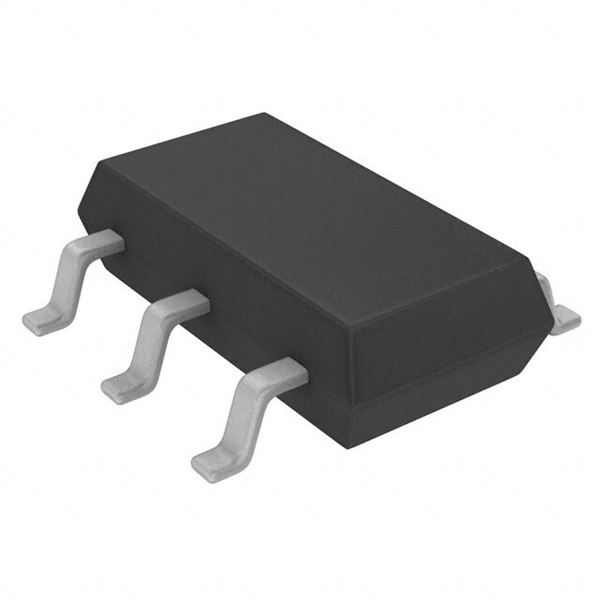

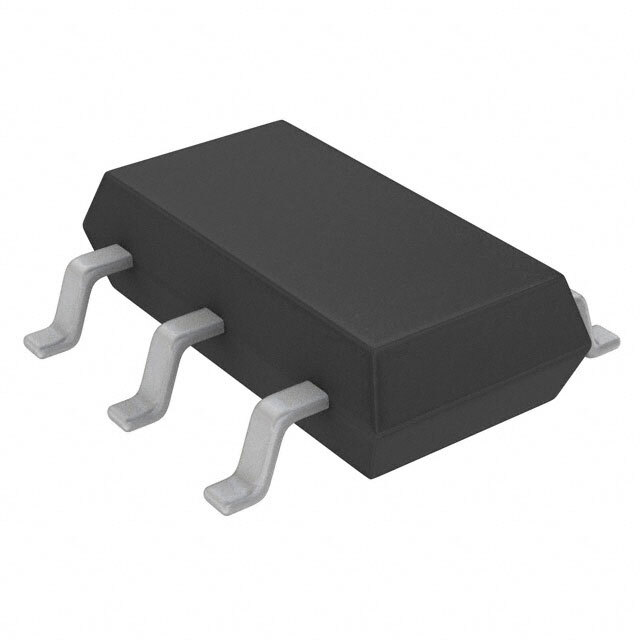

LTC6907HS6#TRPBF

SKU: 69692

Manufacturer: Analog Devices

Silicon Oscillator - 0.04MHz to 4MHz CMOS Automotive 6-Pin TSOT-23 T/R

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Silicon Oscillator
Number of Outputs	1
Manual Reset	No
User Programming Method	Resistor
Standard Frequency Range (MHz)	0.04 to 4
Maximum Frequency Accuracy	±1.3%
Typical Frequency Temperature Coefficient	±0.005%/°C
Typical Frequency Line Regulation	0.06%/V
Maximum Symmetry (%)	57
Output Level	CMOS
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	0.406
Maximum Cycle to Cycle Jitter	0.6%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Standard Package Method	SOT
Pin Count	6
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	6
