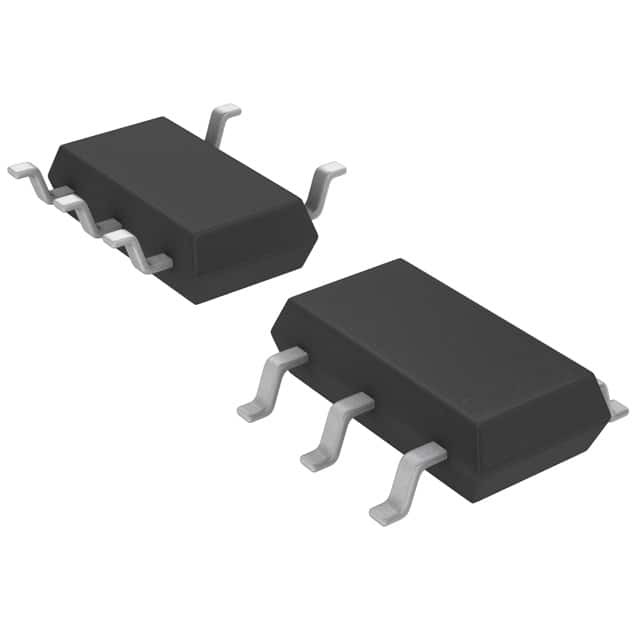

LTC6900IS5#TRMPBF

SKU: 126174

Manufacturer: Analog Devices

Silicon Oscillator - 0.001MHz to 20MHz CMOS Automotive 5-Pin TSOT-23 T/R

17770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Silicon Oscillator
Number of Outputs	1
Manual Reset	No
User Programming Method	Resistor
Standard Frequency Range (MHz)	0.001 to 20
Maximum Frequency Accuracy	±2.5%
Typical Frequency Temperature Coefficient	±0.004%/°C
Typical Frequency Line Regulation	0.04%/V
Maximum Symmetry (%)	55
Output Level	CMOS
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	1.2
Maximum Cycle to Cycle Jitter	0.6%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	SOT
Pin Count	5
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	5
