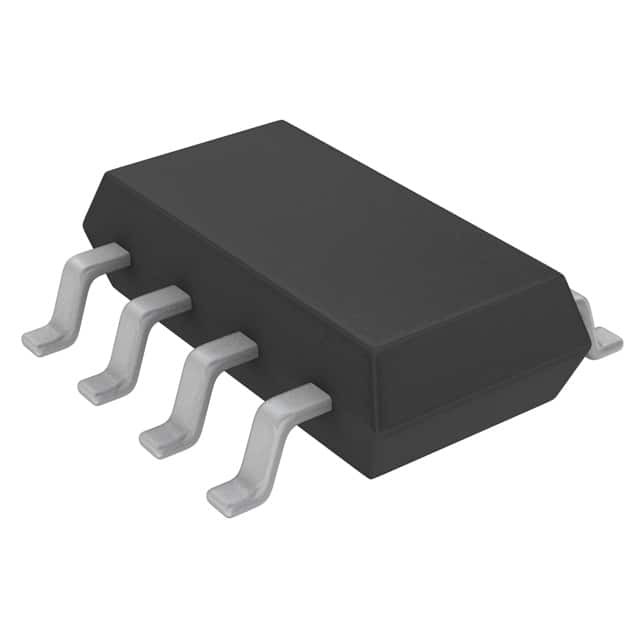

LTC6702HTS8#TRMPBF

SKU: 119150

Manufacturer: Analog Devices

Comparator Dual R-R O/P 5.5V Automotive 8-Pin TSOT-23 T/R

3680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Manufacturer Type	Low Voltage Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Typical CMRR (dB)	70
Typical PSRR (dB)	65
Maximum Propagation Delay Time (ns)	450
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	3.5@3V
Minimum Single Supply Voltage (V)	1.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	0.064@5V
Maximum Test Temperature (°C)	125
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOT-23
Pin Count	8
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	8
