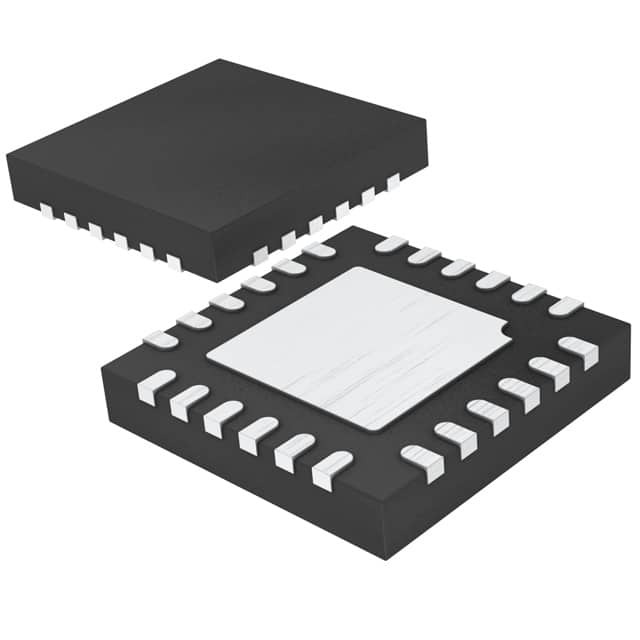

LTC6431AIUF-15#TRPBF

SKU: 126175

Manufacturer: Analog Devices

RF Amp Single Gain Amp 1.7GHz 5.25V 24-Pin QFN EP T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Gain Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	1700
Typical 3dB Bandwidth (MHz)	2000
Typical Power Gain (dB)	15@1000MHz
Typical Output Power (dBm)	19.5@1000MHz
Typical Output Intercept Point (dBm)	38@1000MHz
Maximum Reverse Isolation (dB)	19(Typ)@3000MHz
Maximum Input Return Loss (dB)	10(Typ)@2000MHz
Maximum Output Return Loss (dB)	10(Typ)@1700MHz
Typical Noise Figure (dB)	3.99@1000MHz
Operating Supply Voltage-Max (V)	5.25
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	100@5V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	4
PCB changed	24
