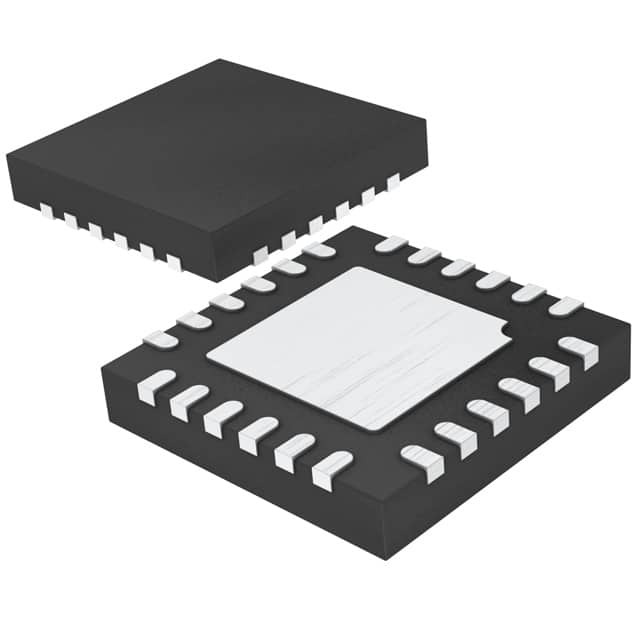

LTC6412CUF#PBF

SKU: 76606

Manufacturer: Analog Devices

SP Amp Variable Gain Amp Single 3.6V 24-Pin QFN EP Tube

80 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Variable Gain Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	18.1
Minimum PSRR (dB)	40
Output Type	Differential
Typical Output Current (mA)	44@3.3V
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	135@3.3V
Maximum Input Resistance (MOhm)	0.000065@3.3V
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Power Supply Type	Single
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	4
PCB changed	24
