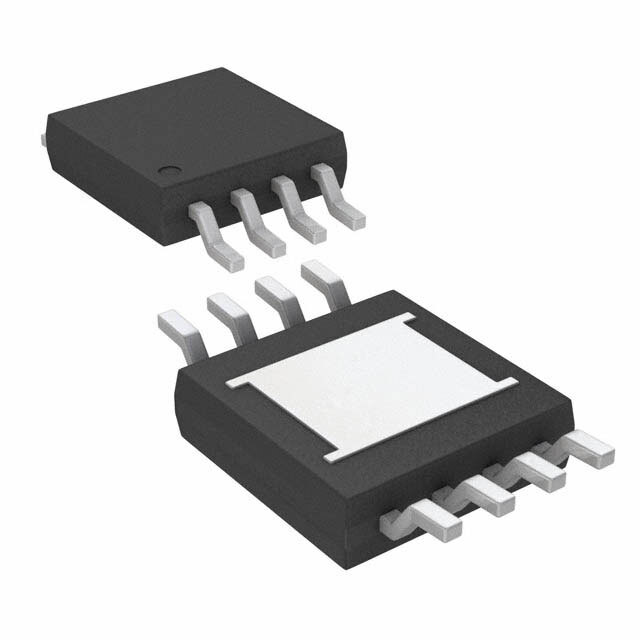

LTC6406CMS8E#TRPBF

SKU: 20094

Manufacturer: Analog Devices

SP Amp DIFF AMP Single R-R I/P 3.5V Automotive 8-Pin MSOP EP T/R

2790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input
Typical Gain Bandwidth Product (MHz)	3000
Minimum CMRR Range (dB)	<60
Minimum CMRR (dB)	50
Minimum PSRR (dB)	55
Output Type	Differential
Typical Output Current (mA)	55
Maximum Input Offset Voltage (mV)	5@3V@0C to 70C
Operating Supply Voltage-Max (V)	3.5
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.5
Maximum Input Bias Current (uA)	17(Typ)@3V@0C to 70C
Maximum Supply Current (mA)	22@3V@0C to 70C
Maximum Input Resistance (MOhm)	0.13(Typ)@3V@0C to 70C
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	8
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
