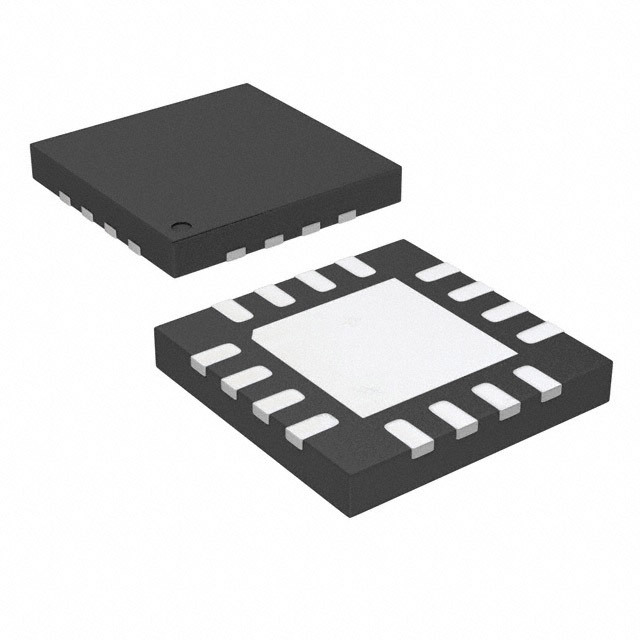

LTC6401IUD-8#TRPBF

SKU: 20093

Manufacturer: Analog Devices

SP Amp DIFF AMP Single 3.5V 16-Pin QFN EP T/R

2370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	8.5
Minimum CMRR Range (dB)	<60
Minimum CMRR (dB)	36
Minimum PSRR (dB)	50
Output Type	Differential
Typical Output Current (mA)	10(Min)@3V@-40C to 85C
Maximum Input Offset Voltage (mV)	4@3V@-40C to 85C
Operating Supply Voltage-Max (V)	3.5
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	2.85
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.5
Maximum Supply Current (mA)	60@3V@-40C to 85C
Maximum Input Resistance (MOhm)	0.00046@3V@-40C to 85C
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	16
