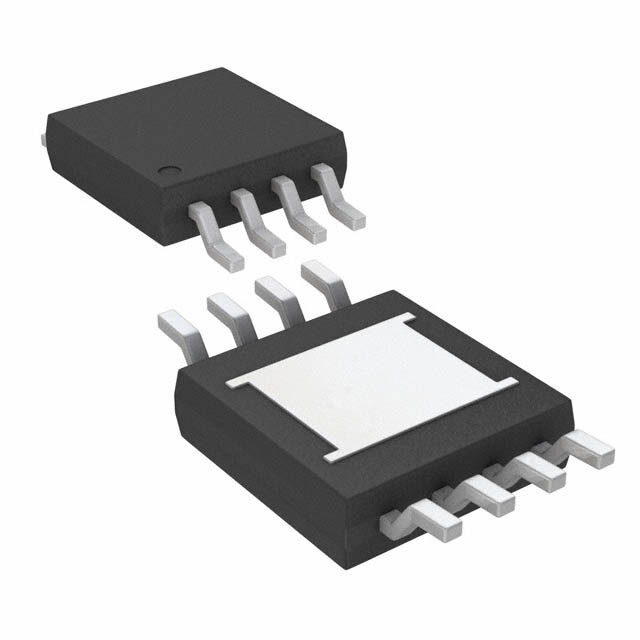

LTC6360CMS8E#TRPBF

SKU: 154657

Manufacturer: Analog Devices

Op Amp Single High Speed Amplifier 5.25V Automotive 8-Pin MSOP EP T/R

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	0.3@5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Input Offset Current (uA)	1@5V
Typical Input Bias Current (uA)	17@5V
Maximum Supply Current (mA)	9.5@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	135@5V
Typical Input Noise Voltage Density (nV/rtHz)	2.3@5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	3@5V
Minimum PSRR (dB)	99(Typ)
Minimum CMRR (dB)	75
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	1000
Typical Settling Time (ns)	150
Shut Down Support	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
