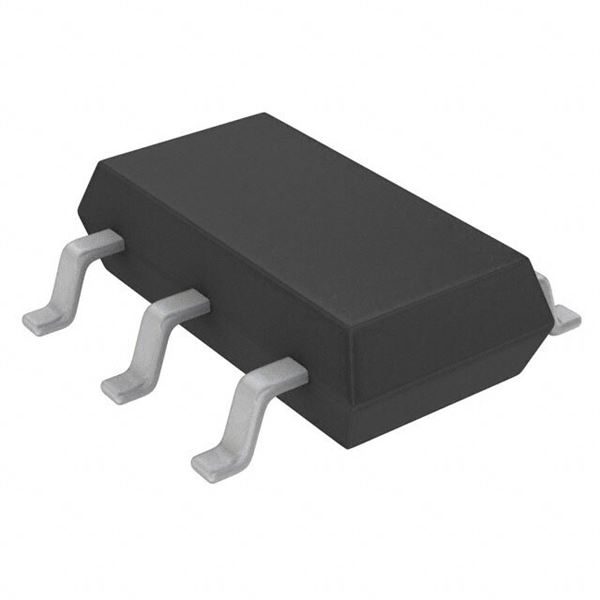

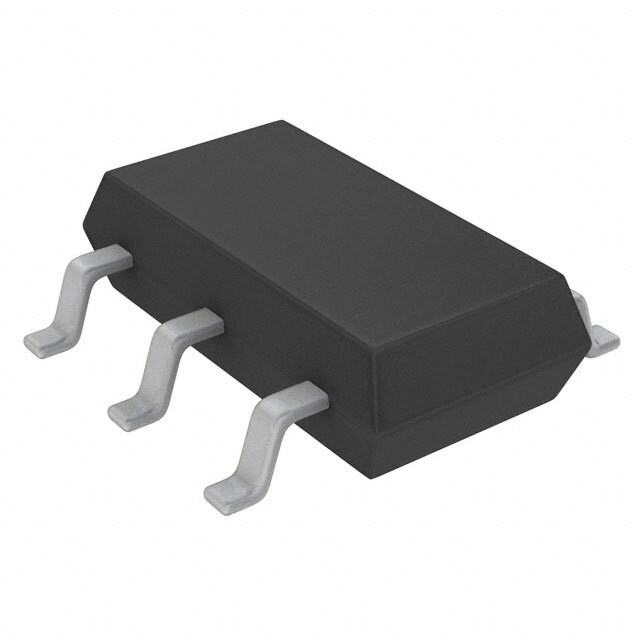

LTC6268IS6#TRPBF

SKU: 112053

Manufacturer: Analog Devices

Op Amp Single Precision Amplifier R-R O/P ±2.625V/5.25V Automotive 6-Pin TSOT-23 T/R

2610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	1@5V
Minimum Single Supply Voltage (V)	3.1
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±1.55
Maximum Dual Supply Voltage (V)	±2.625
Maximum Input Offset Current (uA)	0.00000004@5V
Typical Input Bias Current (uA)	0.000000003@5V
Maximum Input Bias Current (uA)	0.00000002@5V
Maximum Supply Current (mA)	36@5V
Typical Output Current (mA)	135(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	400@5V
Typical Input Noise Voltage Density (nV/rtHz)	4.9@5V
Typical Voltage Gain (dB)	107.96
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0055@5V
Minimum PSRR (dB)	78
Minimum CMRR (dB)	64
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	500
Typical Settling Time (ns)	17
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	6
