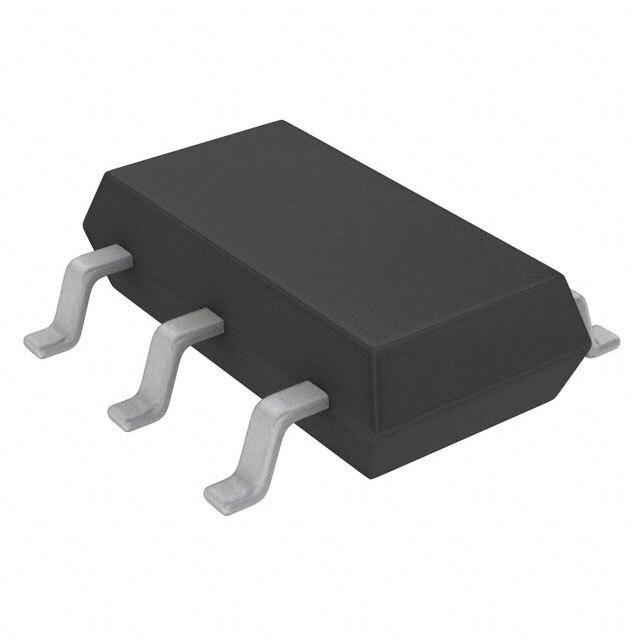

LTC6255CS6#TRPBF

SKU: 126163

Manufacturer: Analog Devices

Op Amp Single Low Power Amplifier R-R I/O 5.25V Automotive 6-Pin TSOT-23 T/R

4170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	0.35@5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.25
Maximum Input Offset Current (uA)	0.02@5V
Maximum Input Bias Current (uA)	0.05@5V
Maximum Quiescent Current (mA)	0.085@5V
Typical Output Current (mA)	20(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	1.8@5V
Typical Input Noise Voltage Density (nV/rtHz)	20@5V
Typical Voltage Gain (dB)	106.02
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.85@5V
Minimum PSRR (dB)	82
Minimum CMRR (dB)	75
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	6.5
Typical Settling Time (ns)	6000
Shut Down Support	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	6
