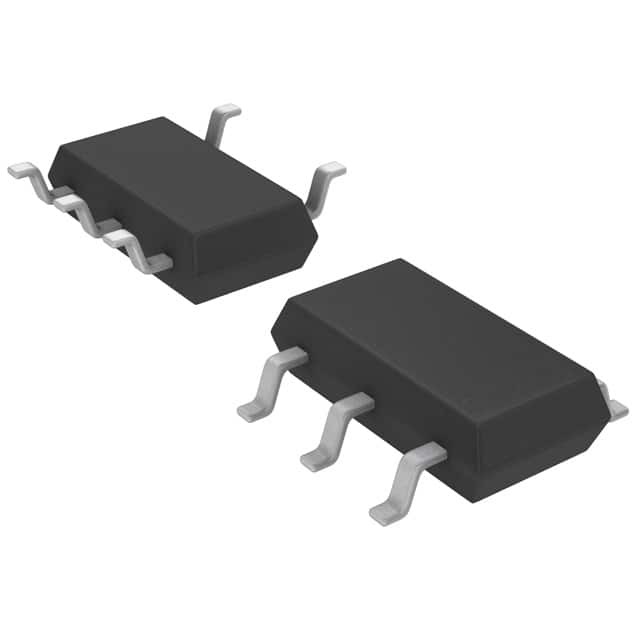

LTC6101AIS5#TRPBF

SKU: 48489

Manufacturer: Analog Devices

SP Amp Current Sense Amp Single 60V Automotive 5-Pin TSOT-23 T/R

260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Minimum PSRR (dB)	110
Typical Output Current (mA)	1(Min)@60V@-40C to 85C
Maximum Input Offset Voltage (mV)	0.3@60V
Operating Supply Voltage-Max (V)	60
Maximum Supply Voltage Range (V)	>=50
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	60
Maximum Input Bias Current (uA)	0.17@60V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	5
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	5
