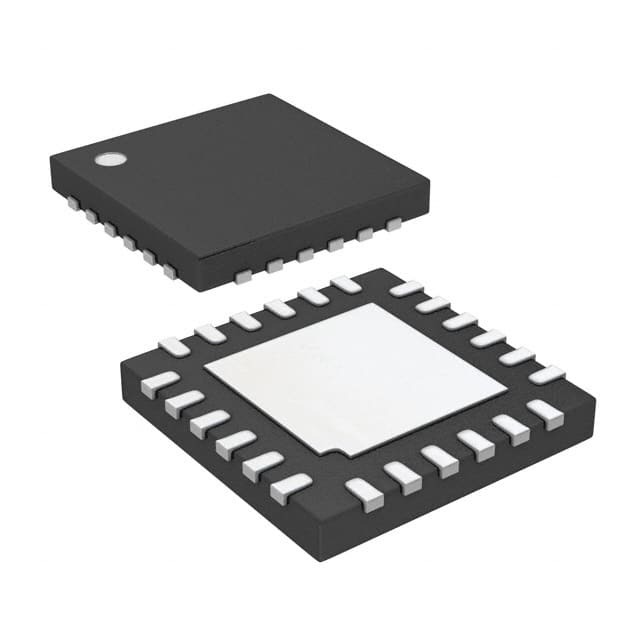

LTC5592IUH#TRPBF

SKU: 140435

Manufacturer: Analog Devices

Up/Down Conv Mixer 3.3V 2.7GHz 24-Pin QFN EP T/R

3460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	1600
Maximum Input Frequency (MHz)	2700
Minimum Output Frequency (MHz)	5
Maximum Output Frequency (MHz)	500
Maximum Conversion Gain (dB)	9.5(Typ)
Typical Noise Figure (dB)	10.4
Typical LO/RF Isolation (dB)	57(Min)
Typical Third Order Input Intercept Point (dBm)	27.3
Operating Supply Voltage-Min (V)	3.1
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	QFN
Original Package	QFN EP
Pin Count	24
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	24
