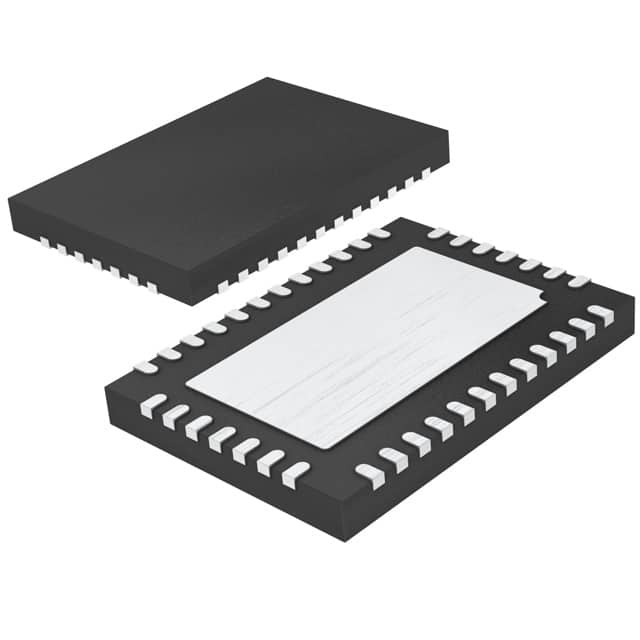

LTC3897IUHF#PBF

SKU: 76549

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Up Automotive 38-Pin QFN EP Tube

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	60(Max)
Minimum Input Voltage (V)	4.2
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	4.2 to 75
Typical Quiescent Current (mA)	0.055(Min)
Typical Gate Driver Pull Up Resistance (Ohm)	2.5/2.5
Typical Gate Driver Pull Down Resistance (Ohm)	1/1.5
Synchronous Rectifier	No
Synchronous Clock	Yes
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	38
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	7
Package Width	5
PCB changed	38
