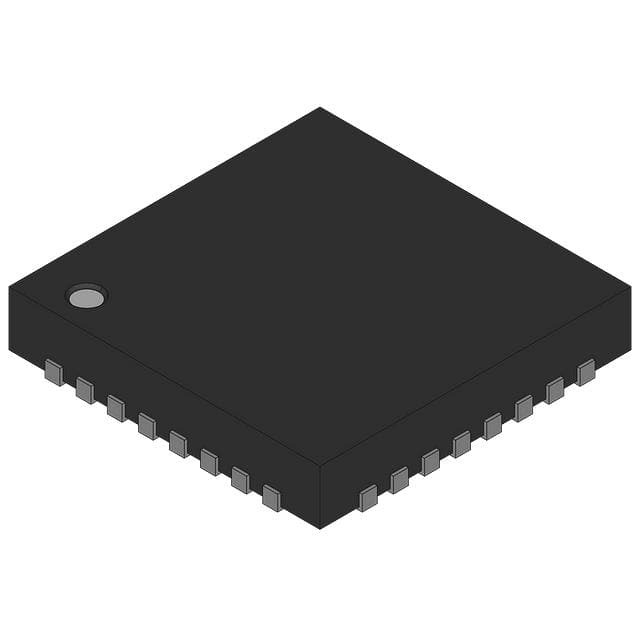

LTC3892IUH-2#TRPBF

SKU: 83710

Manufacturer: Analog Devices

DC/DC Cntrlr Dual-OUT Step Down 585kHz Automotive 32-Pin QFN EP T/R

3320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs	2
Topology	Step Down
Output Voltage (V)	0.8 to 59.4
Maximum Switching Frequency (kHz)	585
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	4.5 to 60
Typical Quiescent Current (mA)	0.029
Typical Gate Driver Pull Up Resistance (Ohm)	2.2
Typical Gate Driver Pull Down Resistance (Ohm)	1
Minimum Switching Frequency (kHz)	485
Typical Switching Frequency (kHz)	535
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	32
