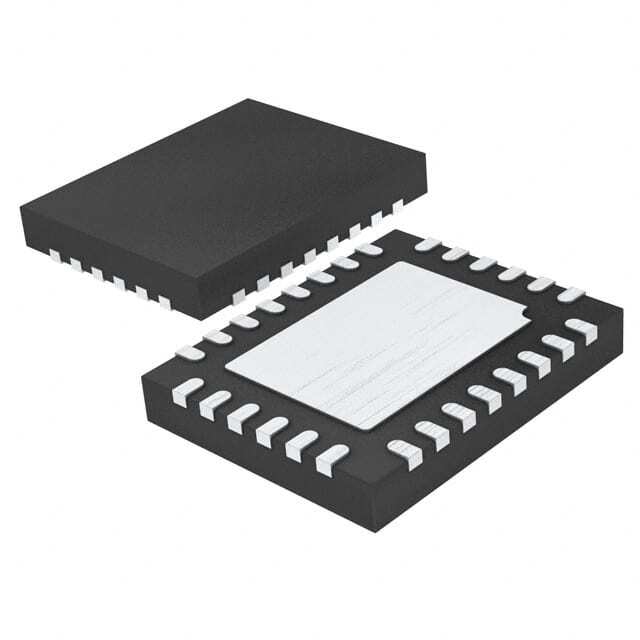

LTC3870IUFD#PBF

SKU: 41316

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 1000kHz Automotive 28-Pin QFN EP Tube

2260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.5 to 14
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	60
Typical Quiescent Current (mA)	2.6
Typical Gate Driver Pull Up Resistance (Ohm)	2.5/2.4
Typical Gate Driver Pull Down Resistance (Ohm)	1.5/1.1
Minimum Switching Frequency (kHz)	100
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	28
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	28
