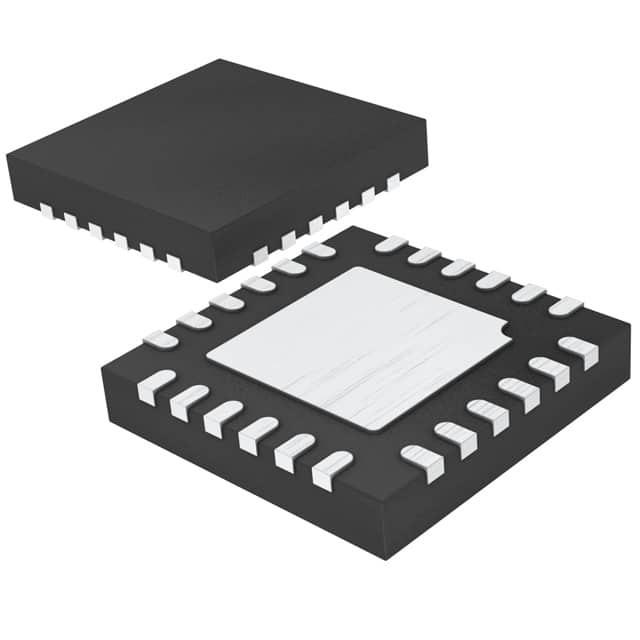

LTC3866IUF#TRPBF

SKU: 55617

Manufacturer: Analog Devices

Current Mode PWM Controller 0.6V to 3.5V 30A 250kHz to 770kHz Automotive 24-Pin QFN EP T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current
Topology	Boost
Number of PWM Outputs	1
Switching Frequency (kHz)	250 to 770
Output Current (mA)	30000
Rise Time (ns)	25
Fall Time (ns)	25
Output Voltage (V)	0.6 to 3.5
Operating Supply Voltage (V)	4.5 to 38
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	38
Maximum Supply Current (mA)	3.2(Typ)
Adjustable Output	Yes
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	4
PCB changed	24
