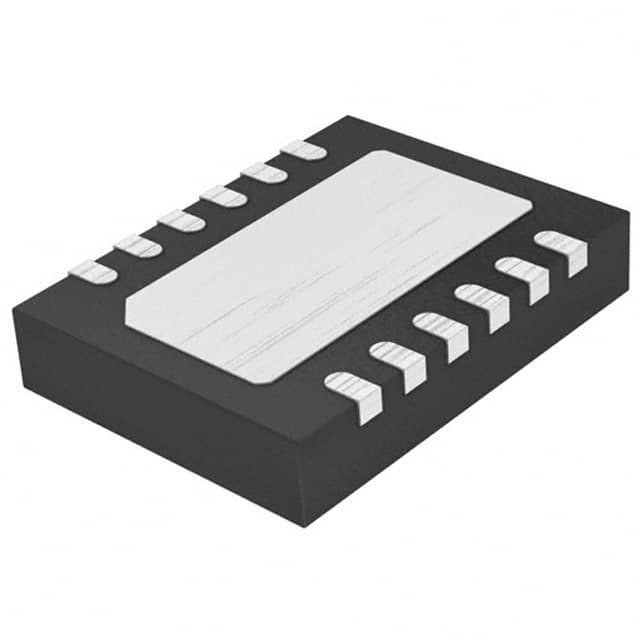

LTC3863EDE#TRPBF

SKU: 140398

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Inverting 850kHz Automotive 12-Pin DFN EP T/R

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Inverting
Output Voltage (V)	-0.4 to -150
Maximum Switching Frequency (kHz)	850
Minimum Input Voltage (V)	3.5
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	3.5 to 60
Maximum Supply Current (mA)	1.2
Typical Quiescent Current (mA)	0.77
Typical Gate Driver Pull Up Resistance (Ohm)	2
Typical Gate Driver Pull Down Resistance (Ohm)	0.9
Minimum Switching Frequency (kHz)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	12
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	3
PCB changed	12
