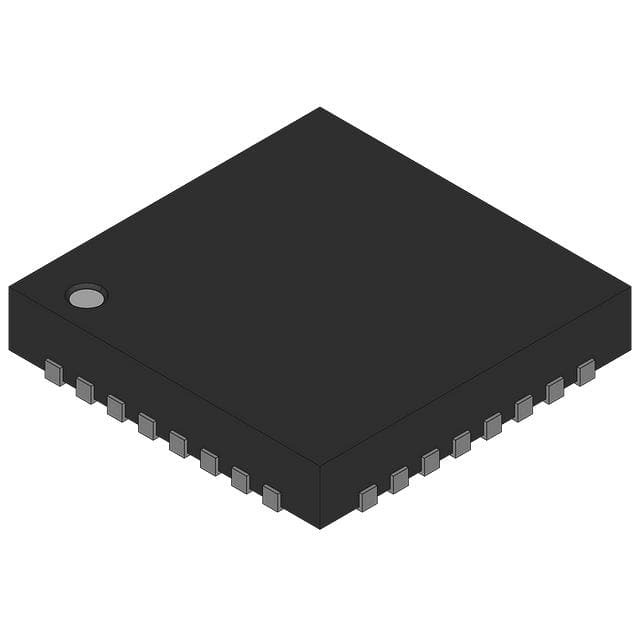

LTC3860IUH#TRPBF

SKU: 20027

Manufacturer: Analog Devices

Voltage Mode PWM Controller 0.6V to 5V 240A 250kHz to 1250kHz 32-Pin QFN EP T/R

630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage Mode PWM Controller
Topology	Buck
Number of PWM Outputs	2
Switching Frequency (kHz)	250 to 1250
Maximum Duty Cycle (%)	91.5(Typ)
Output Current (mA)	240000
Output Voltage (V)	0.6 to 5
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	14(Typ)
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	32
