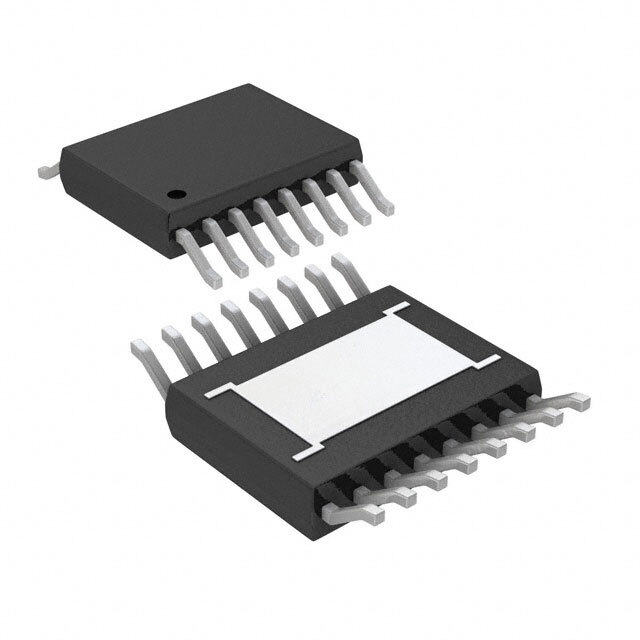

LTC3851IMSE#TRPBF

SKU: 55611

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 790kHz Automotive 16-Pin MSOP EP T/R

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.8 to 5.5
Maximum Switching Frequency (kHz)	790
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	38
Operating Supply Voltage (V)	4 to 38
Maximum Supply Current (mA)	1.2(Typ)
Typical Gate Driver Pull Up Resistance (Ohm)	2.4/2.6
Typical Gate Driver Pull Down Resistance (Ohm)	1.1/1.5
Minimum Switching Frequency (kHz)	710
Typical Switching Frequency (kHz)	750
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	16
