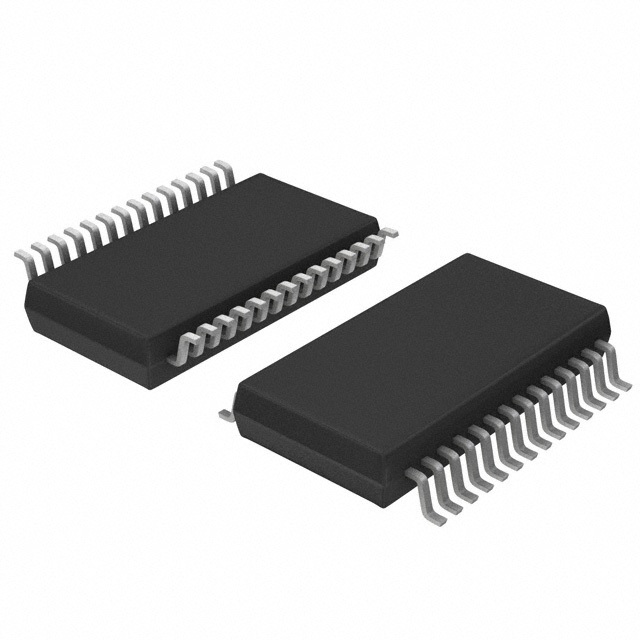

LTC3813IG#PBF

SKU: 90723

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Up 1000kHz Automotive 28-Pin SSOP Tube

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	7 to 100
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	7
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	6.35 to 14
Maximum Supply Current (mA)	6
Typical Quiescent Current (mA)	3
Minimum Switching Frequency (kHz)	100
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	10.5(Max)
Package Width	5.6(Max)
PCB changed	28
