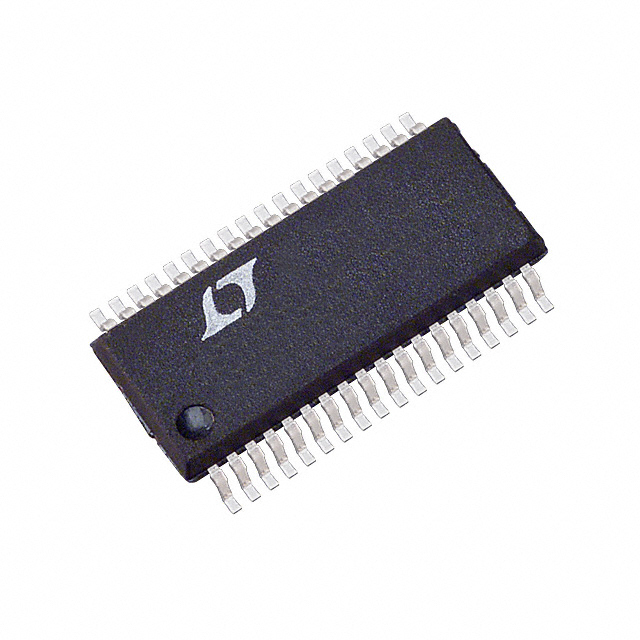

LTC3811EG#TRPBF

SKU: 62616

Manufacturer: Analog Devices

DC/DC Cntrlr Dual-OUT Step Down 850kHz 36-Pin SSOP T/R

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	2
Topology	Step Down
Output Voltage (V)	0.6 to 3.3
Maximum Switching Frequency (kHz)	850
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	30
Operating Supply Voltage (V)	4.5 to 30
Typical Quiescent Current (mA)	10.5
Typical Gate Driver Pull Down Resistance (Ohm)	0.9/0.9
Minimum Switching Frequency (kHz)	650
Typical Switching Frequency (kHz)	750
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	36
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	13.1(Max)
Package Width	5.6(Max)
PCB changed	36
