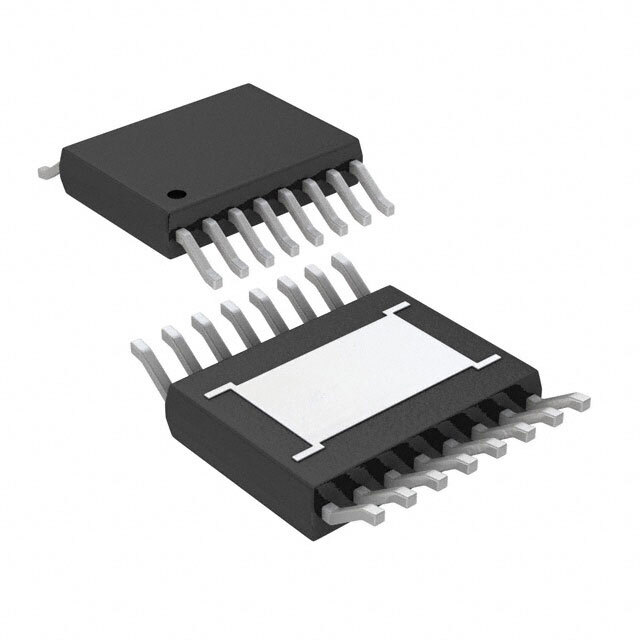

LTC3786EMSE#TRPBF

SKU: 154598

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Up 900kHz Automotive 16-Pin MSOP EP T/R

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	60(Max)
Maximum Output Current (A)	9
Maximum Switching Frequency (kHz)	900
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	38
Operating Supply Voltage (V)	4.5 to 38
Maximum Supply Current (mA)	0.8(Typ)
Typical Quiescent Current (mA)	0.055
Typical Gate Driver Pull Up Resistance (Ohm)	1.2/1.2
Typical Gate Driver Pull Down Resistance (Ohm)	1.2/1.2
Minimum Switching Frequency (kHz)	50
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	16
