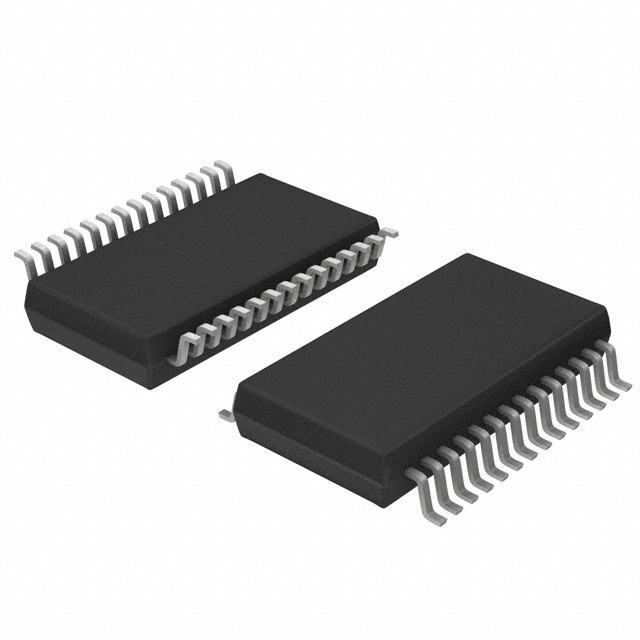

LTC3784EGN#TRPBF

SKU: 154597

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Up 900kHz Automotive 28-Pin SSOP N T/R

830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	60(Max)
Maximum Switching Frequency (kHz)	900
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	4.5 to 60
Maximum Supply Current (mA)	0.9(Typ)
Typical Quiescent Current (mA)	0.028
Typical Gate Driver Pull Up Resistance (Ohm)	1.2/1.2
Typical Gate Driver Pull Down Resistance (Ohm)	1.2/1.2
Minimum Switching Frequency (kHz)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	9.98(Max)
Package Width	3.99(Max)
PCB changed	28
