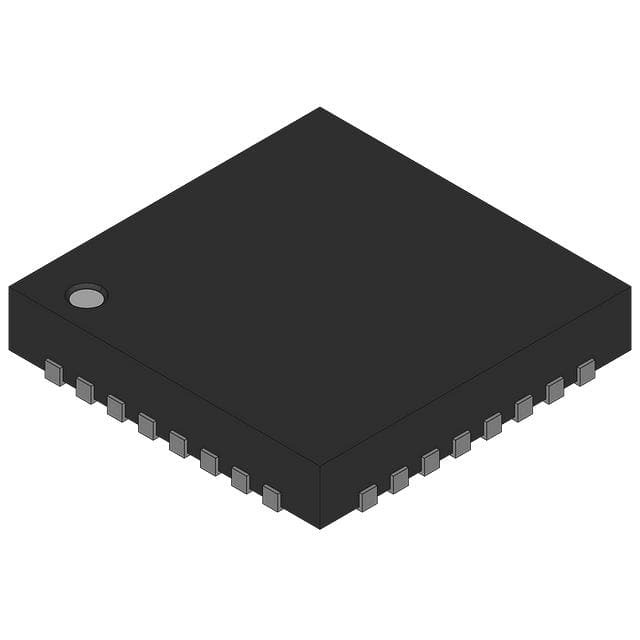

LTC3770EUH#TRPBF

SKU: 111980

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 32-Pin QFN EP T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.6(Min)
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	32
Operating Supply Voltage (V)	-0.3 to 32
Maximum Supply Current (mA)	2.2
Typical Gate Driver Pull Up Resistance (Ohm)	1.9
Typical Gate Driver Pull Down Resistance (Ohm)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	32
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	32
