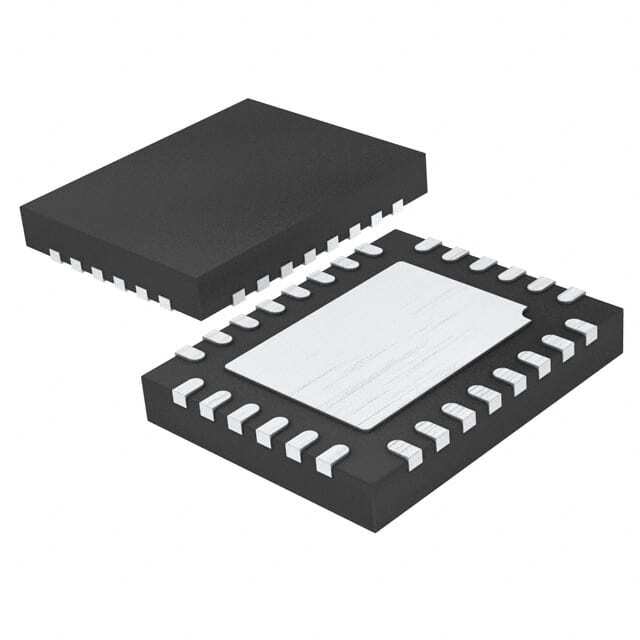

LTC3766EUFD#TRPBF

SKU: 126104

Manufacturer: Analog Devices

Secondary Side PWM Controller Automotive 28-Pin QFN EP T/R

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Secondary Side PWM Controller
Control Method	Current
Topology	Buck
Number of PWM Outputs	1
Oscillator Accuracy (kHz)	275
Maximum Duty Cycle (%)	81
Operating Supply Voltage-Min (V)	5
Operating Supply Voltage-Max (V)	10
Maximum Supply Current (mA)	5(Typ)
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	Yes
UVLO Turn-On Threshold (V)	3.2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Pin Count	28
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	28
