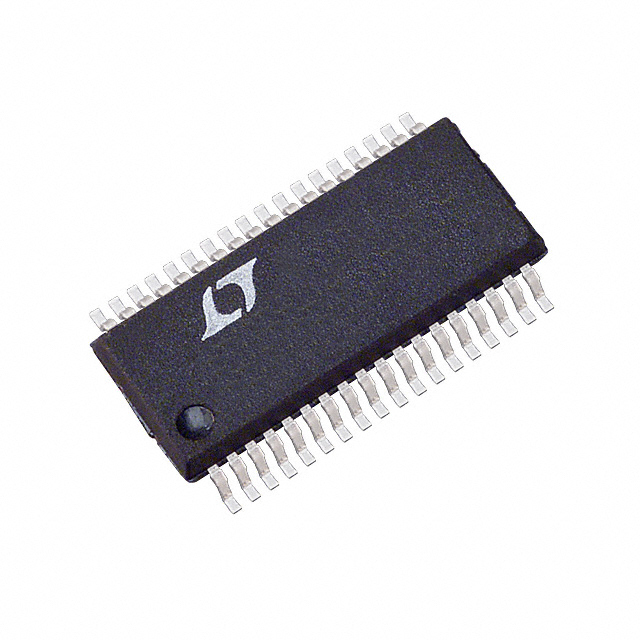

LTC3733CG#PBF

SKU: 119078

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 620kHz 36-Pin SSOP Tube

180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.8 to 1.55
Maximum Switching Frequency (kHz)	620
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	4 to 36
Maximum Supply Current (mA)	2.5(Typ)
Minimum Switching Frequency (kHz)	470
Typical Switching Frequency (kHz)	530
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Pin Count	36
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	13.1(Max)
Package Width	5.6(Max)
PCB changed	36
