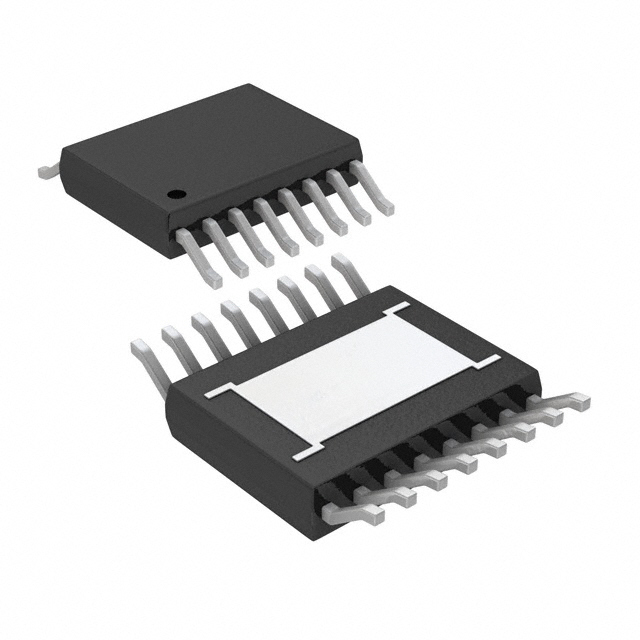

LTC3569IFE#TRPBF

SKU: 119069

Manufacturer: Analog Devices

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Triple-Out 0.425V to 5.5V 1.2A/0.6A/0.6A Automotive 16-Pin TSSOP EP T/R

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1000 to 3000
Switching Regulator	Yes
Number of Outputs	3
Output Voltage (V)	0.425 to 5.5
Maximum Output Current (A)	0.6
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.5 to 5.5
Typical Quiescent Current (uA)	100(Max)
Line Regulation	0.2%/V
Load Regulation	0.5%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
