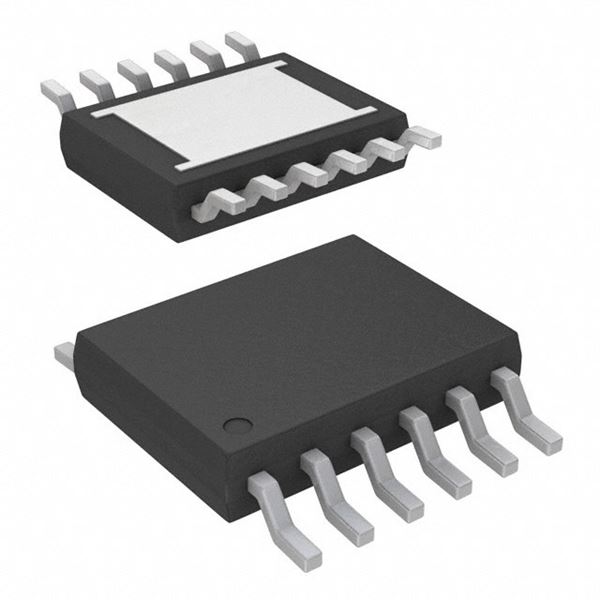

LTC3536EMSE#TRPBF

SKU: 97792

Manufacturer: Analog Devices

Conv DC-DC 1.8V to 5.5V Synchronous Step Down/Step Up Single-Out 1.8V to 5.5V 1A 12-Pin MSOP EP T/R

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	300 to 2000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.8 to 5.5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	5.5
Typical Quiescent Current (uA)	32
Efficiency (%)	95
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	12
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	12
