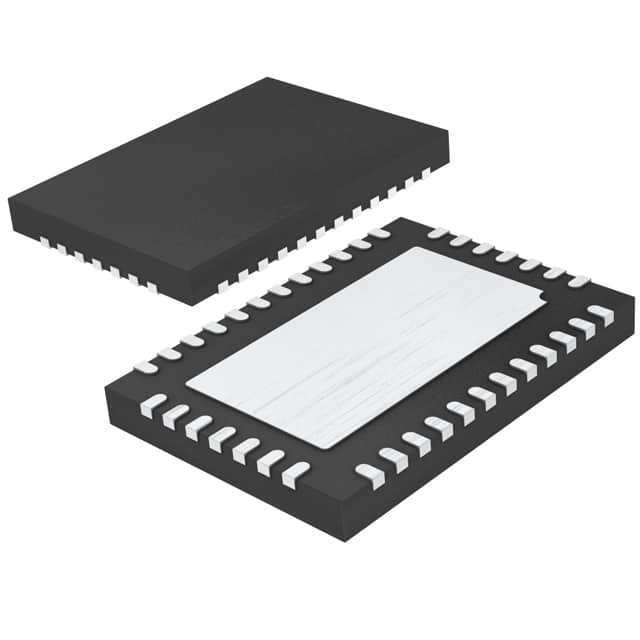

LTC3415EUHF

SKU: 133278

Manufacturer: Analog Devices

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 7A 38-Pin QFN EP

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	2250
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 5.5
Maximum Output Current (A)	7
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.5 to 5.5
Typical Quiescent Current (uA)	450
Line Regulation	0.3%/V
Load Regulation	0.2%
Efficiency (%)	96
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	38
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	7
Package Width	5
PCB changed	38
