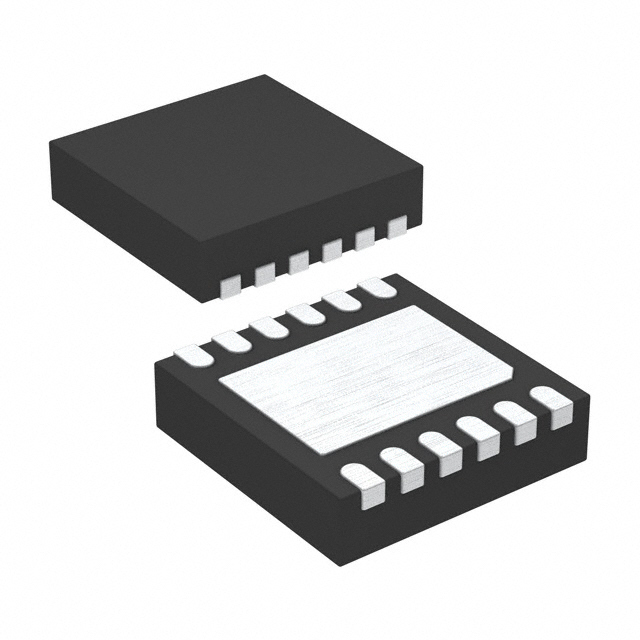

LTC2953IDD-2#TRPBF

SKU: 108354

Manufacturer: Analog Devices

Processor Supervisor 0.8V 1 Open Drain Automotive 12-Pin DFN EP T/R

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Supervisors	1
Output Driver	Open Drain
Minimum Reset Threshold Voltage (V)	0.6
Typical Reset Threshold Voltage (V)	0.8
Maximum Reset Threshold Voltage (V)	1
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	27
Maximum Supply Current (uA)	26
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Type	Voltage Monitor
Pin Count	12
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	12
