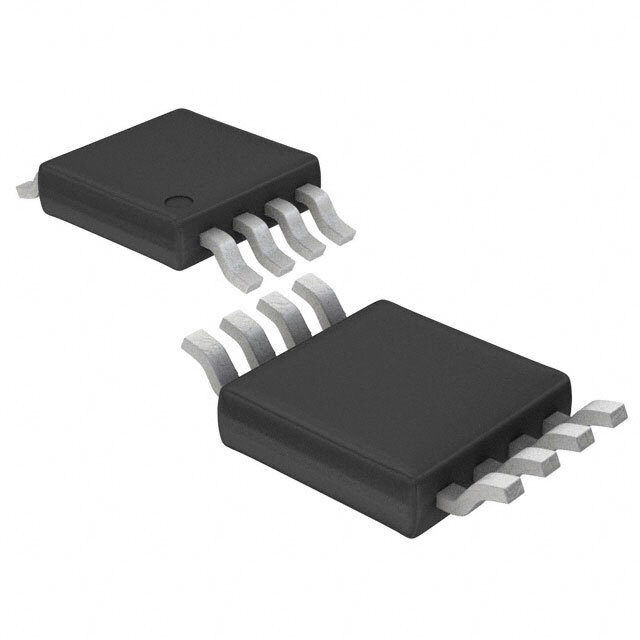

LTC2850MPMS8

SKU: 147362

Manufacturer: Analog Devices

Single Transmitter/Receiver RS-422/RS-485 Automotive 8-Pin MSOP Tube

3480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Line Transceiver
Data Rate	20Mbps(Min)
Transmitter Communication Type	RS-422
Receiver Communication Type	RS-422
Interface Standards	EIA/TIA-485-A
Data Transmission Topology	Multipoint
Number of Transceivers	1
Number of Transmitters	1
Number of Receivers	1
Transmitter Signal Type	Differential
Receiver Signal Type	Differential
Number of Drivers per Line	1
Number of Receivers per Line	1
Driving Mode	3-State
Number of Transmitter Enables	1
Number of Receiver Enables	1
Operating Temperature-Min	-55
Operating Temperature-Max	125
Power Supply Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	1
Supplier Temperature Grade	Industrial
Isolation	Yes
Packing Method	Tube
Pin Count	8
Original Package	MSOP
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
