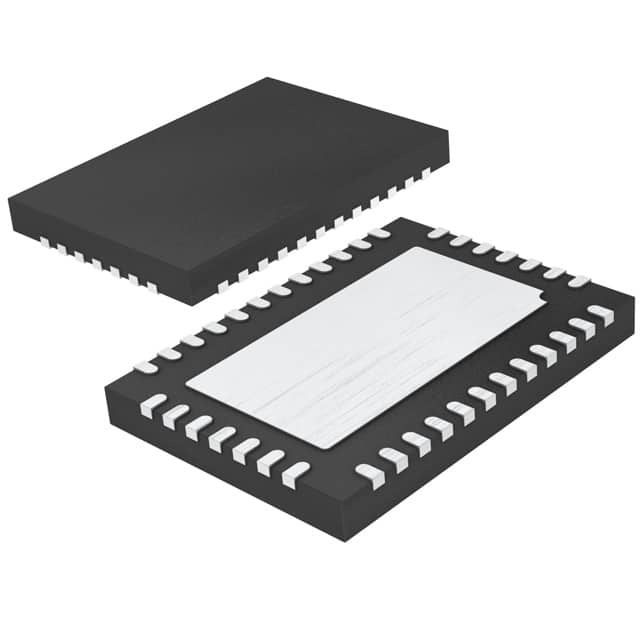

LTC2847CUHF#TRPBF

SKU: 76457

Manufacturer: Analog Devices

Triple Transmitter/Receiver RS-232/RS-449/RS-530 38-Pin QFN EP T/R

610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Function	Line Transceiver
Transmitter Communication Type	RS-530
Receiver Communication Type	RS-449
Interface Standards	EIA-530
Data Transmission Topology	Point-to-Point
Number of Transceivers	1
Number of Transmitters	3
Number of Receivers	3
Transmitter Signal Type	Single-Ended
Receiver Signal Type	Single-Ended
Number of Drivers per Line	1
Number of Receivers per Line	1@RS-232
Driving Mode	3-State
Number of Transmitter Enables	1
Number of Receiver Enables	1
Operating Temperature-Min	0
Operating Temperature-Max	70
Power Supply Type	Single
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	170
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	38
Original Package	QFN EP
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	7
Package Width	5
PCB changed	38
