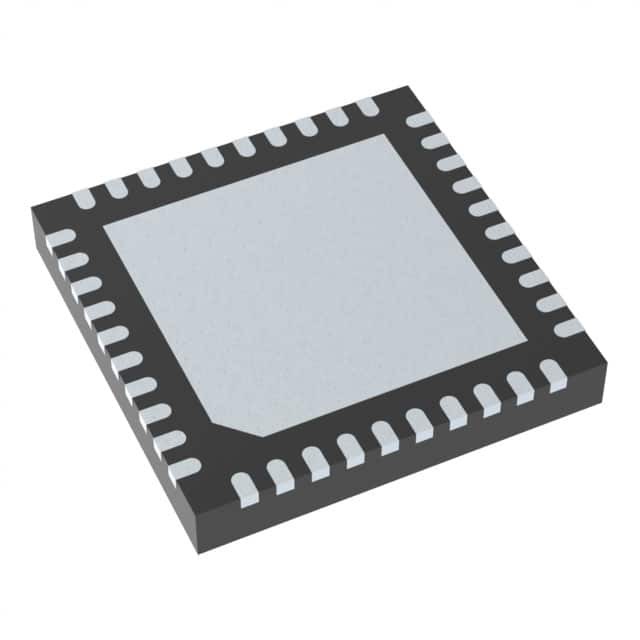

LTC2668IUJ-16#TRPBF

SKU: 27035

Manufacturer: Analog Devices

DAC 16-CH 16-bit 40-Pin QFN EP T/R

980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	16bit
Number of DAC Channels	16
Number of Outputs per Chip	16
Maximum Settling Time (us)	20.5(Typ)
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5/15
Maximum Single Supply Voltage (V)	5.5/15.75
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15/5
Maximum Dual Supply Voltage (V)	±15.75/5.5
Power Supply Type	Single
Integral Nonlinearity Error	±4LSB
Full Scale Error	±0.08%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Original Package	QFN EP
Pin Count	40
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6
Package Width	6
PCB changed	40
