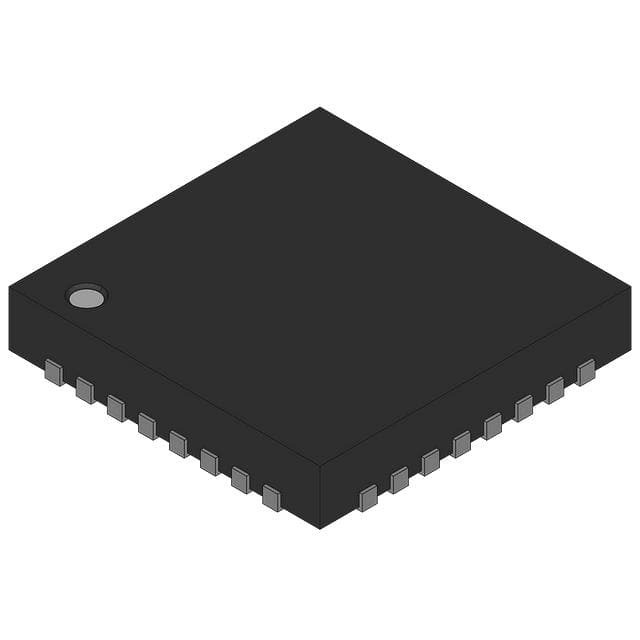

LTC2662CUH-12#PBF

SKU: 101297

Manufacturer: Analog Devices

DAC 5-CH 12-bit 32-Pin QFN EP Tube

4070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	12bit
Number of DAC Channels	5
Number of Outputs per Chip	5
Maximum Settling Time (us)	6.1(Typ)
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.85
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5/33
Minimum Dual Supply Voltage (V)	0/2.85
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	-15.75/5.5/33
Power Supply Type	Dual
Integral Nonlinearity Error	±4LSB
Full Scale Error	±1.5%FSR
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Supplier Temperature Grade	Commercial
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	32
