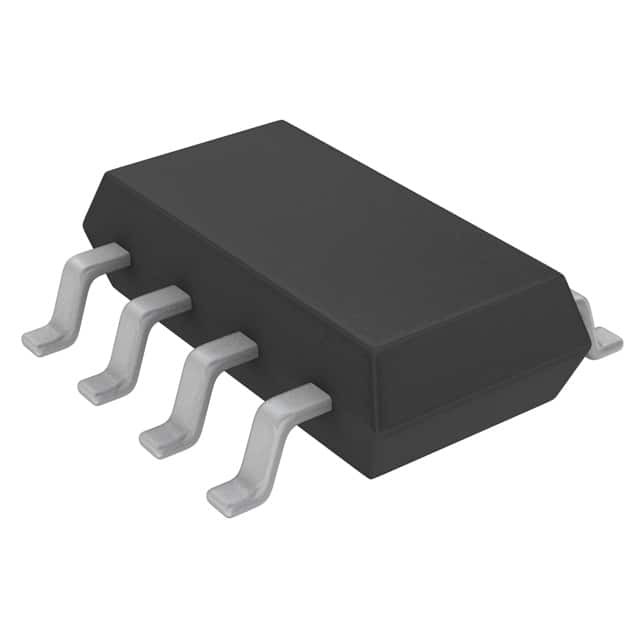

LTC2640ACTS8-HZ12#TRPBF

SKU: 55508

Manufacturer: Analog Devices

DAC 1-CH 12-bit 8-Pin TSOT-23 T/R

2670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	12bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	4.6(Typ)
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	±1LSB
Full Scale Error	±0.4%FSR
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	8
Standard Package Method	SOT-23
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	8
