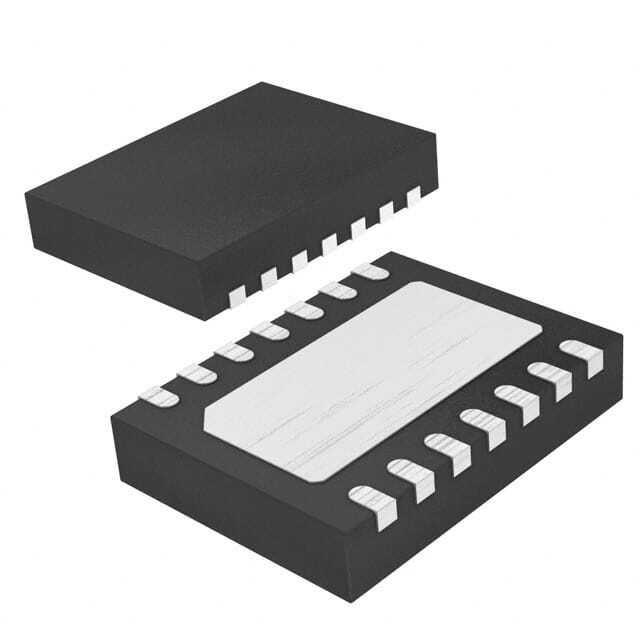

LTC2636IDE-LZ8#PBF

SKU: 37753

Manufacturer: Analog Devices

DAC 8-CH 8-bit 14-Pin DFN EP Tube

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	8bit
Number of DAC Channels	8
Number of Outputs per Chip	8
Maximum Settling Time (us)	3.4(Typ)
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	2.7(Typ)
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±0.8%FSR
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Supplier Temperature Grade	Industrial
Pin Count	14
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	3
PCB changed	14
