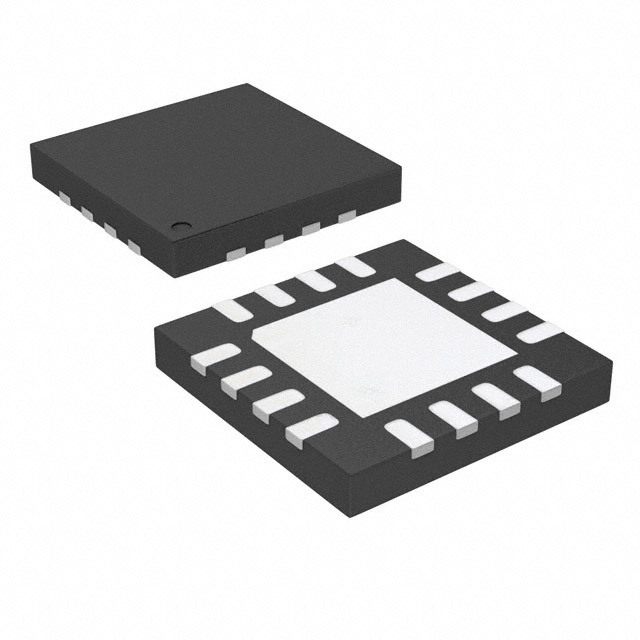

LTC2634CUD-HMI12#PBF

SKU: 69523

Manufacturer: Analog Devices

DAC 4-CH 12-bit 16-Pin QFN EP Tube

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	12bit
Number of DAC Channels	4
Number of Outputs per Chip	4
Maximum Settling Time (us)	4.8(Typ)
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	1.8(Typ)
Integral Nonlinearity Error	±2.5LSB
Full Scale Error	±0.8%FSR
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Supplier Temperature Grade	Commercial
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	16
