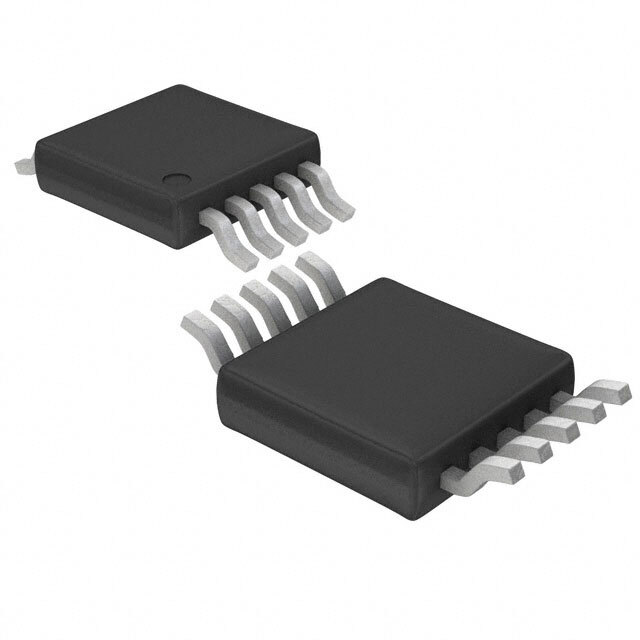

LTC2480HMS#PBF

SKU: 48351

Manufacturer: Analog Devices

1-Channel Single ADC Delta-Sigma 15sps 16-bit Serial Automotive 10-Pin MSOP Tube

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Temperature Measurement
Architecture	Delta-Sigma
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	15sps
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI, Microwire)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.75V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	0.48
Integral Nonlinearity Error	10ppm of Vref
Full Scale Error	±40ppm of Vref
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Automotive
Pin Count	10
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
