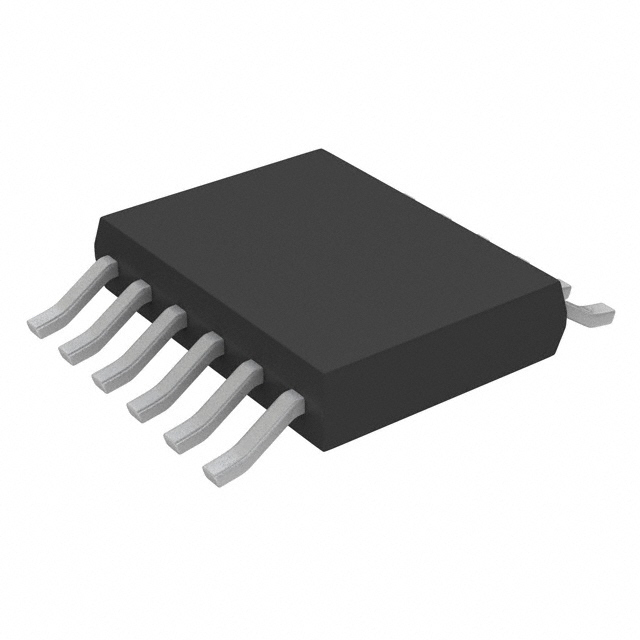

LTC2472IMS#TRPBF

SKU: 69513

Manufacturer: Analog Devices

1-Channel Dual ADC Delta-Sigma 833sps 16-bit Serial Automotive 12-Pin MSOP T/R

2050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Converter Type	Temperature Measurement
Architecture	Delta-Sigma
Resolution	16bit
Number of ADCs	2
Number of Input Channels	1
Sampling Rate	833sps
Digital Interface Type	Serial (2-Wire, 3-Wire, 4-Wire, SPI)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±1.25V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	10.5
Integral Nonlinearity Error	16LSB
Full Scale Error	±0.25%FSR
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	12
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	12
