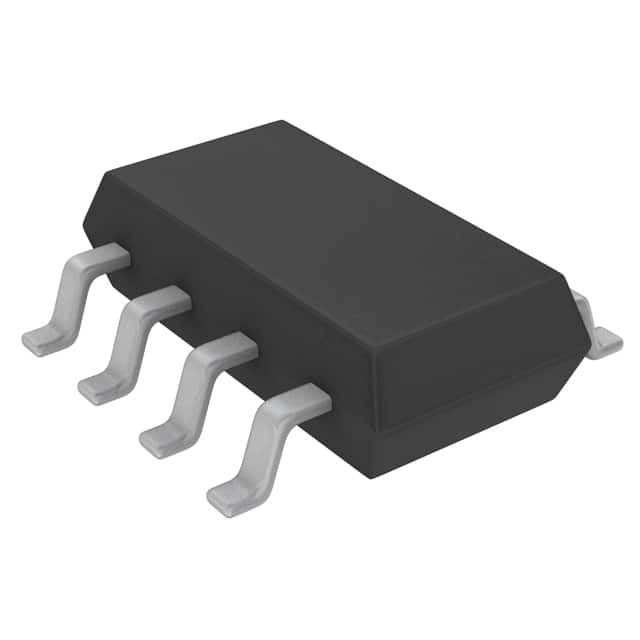

LTC2451ITS8#TRPBF

SKU: 111899

Manufacturer: Analog Devices

1-Channel Single ADC Delta-Sigma 60sps 16-bit Serial Automotive 8-Pin TSOT-23 T/R

7890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Converter Type	Temperature Measurement
Architecture	Delta-Sigma
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	60sps
Digital Interface Type	Serial (2-Wire, I2C)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5.5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	1.2
Integral Nonlinearity Error	10LSB
Full Scale Error	4LSB
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Pin Count	8
Standard Package Method	SOT-23
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	8
