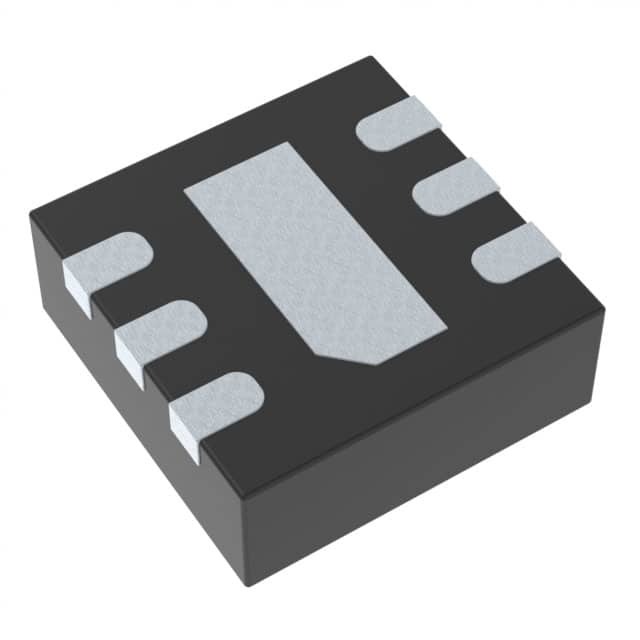

LTC2450CDC#TRPBF

SKU: 48349

Manufacturer: Analog Devices

1-Channel Single ADC Delta-Sigma 30sps 16-bit Serial 6-Pin DFN EP T/R

960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Temperature Measurement
Architecture	Delta-Sigma
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	30sps
Digital Interface Type	Serial (2-Wire, 3-Wire, SPI)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Supply
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	1.05
Integral Nonlinearity Error	10LSB
Full Scale Error	4LSB
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	6
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2
Package Width	2
PCB changed	6
