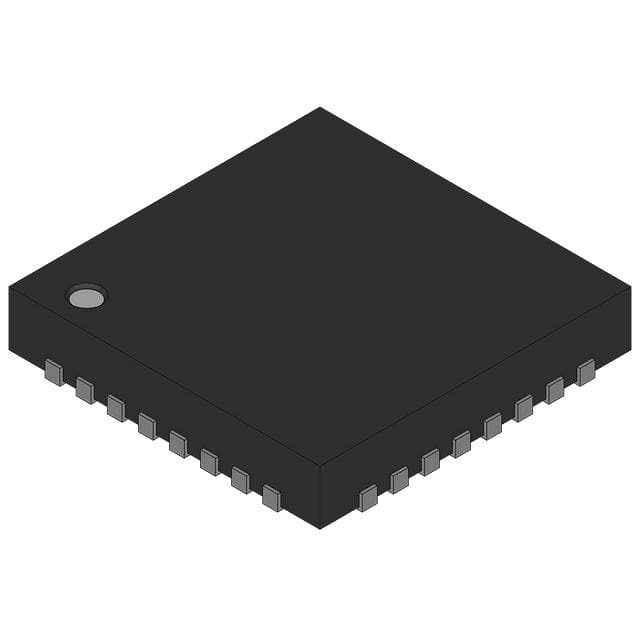

LTC2386CUH-16#PBF

SKU: 115487

Manufacturer: Analog Devices

1-Channel Single ADC SAR 10Msps 16-bit Serial 32-Pin QFN EP Tube

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.c.4
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	10Msps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±4.096V
Minimum Single Supply Voltage (V)	2.375/4.75
Typical Single Supply Voltage (V)	2.5/5
Maximum Single Supply Voltage (V)	2.625/5.25
Typical Power Dissipation (mW)	97
Maximum Power Dissipation (mW)	113
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±40LSB
Signal to Noise Ratio	94dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	No
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Supplier Temperature Grade	Commercial
Pin Count	32
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	32
