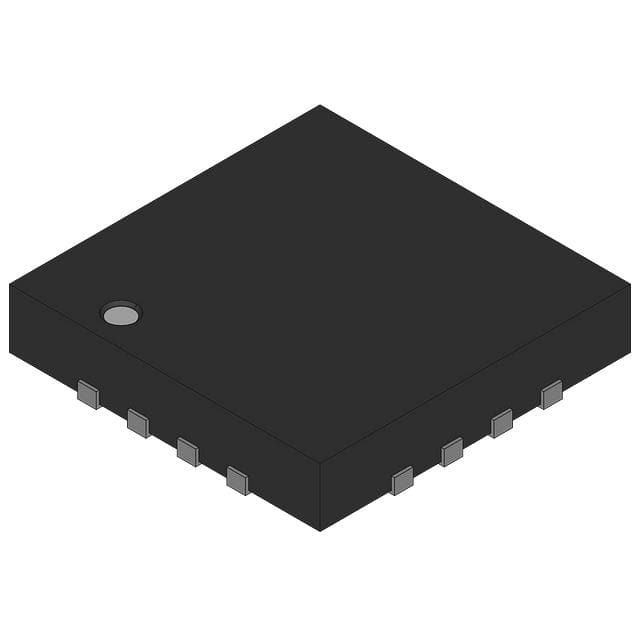

LTC2367CDE-16#PBF

SKU: 12855

Manufacturer: Analog Devices

1-Channel Single ADC SAR 500ksps 16-bit Serial 16-Pin DFN EP Tube

3880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	500ksps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5.1V
Minimum Single Supply Voltage (V)	2.375
Typical Single Supply Voltage (V)	2.5
Maximum Single Supply Voltage (V)	2.625
Typical Power Dissipation (mW)	6.75
Maximum Power Dissipation (mW)	8
Integral Nonlinearity Error	±0.75LSB
Full Scale Error	±20LSB
Signal to Noise Ratio	94.7dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Supplier Temperature Grade	Commercial
Original Package	DFN EP
Pin Count	16
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	3
PCB changed	16
