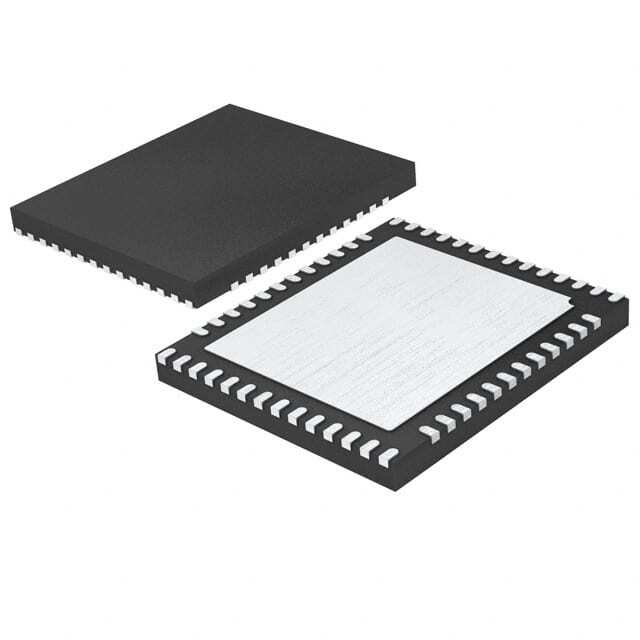

LTC2324IUKG-12#PBF

SKU: 73066

Manufacturer: Analog Devices

4-Channel Quad ADC SAR 2Msps 12-bit Serial (SPI)/LVDS 52-Pin QFN EP Tube

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	4
Number of Input Channels	4
Sampling Rate	2Msps
Digital Interface Type	Serial (SPI)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±2.048V/±4.096V
Minimum Single Supply Voltage (V)	3.13
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	3.47
Typical Power Dissipation (mW)	214
Maximum Power Dissipation (mW)	262
Integral Nonlinearity Error	±1LSB
Full Scale Error	±0.5LSB
Signal to Noise Ratio	78.5dB(Typ)
No Missing Codes (bit)	12
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Supplier Temperature Grade	Industrial
Original Package	QFN EP
Pin Count	52
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	8
Package Width	7
PCB changed	52
