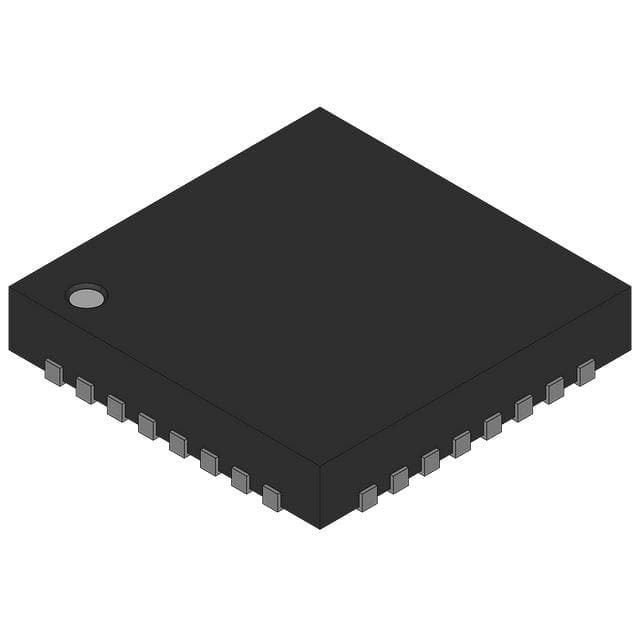

LTC2255IUH

SKU: 154498

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 125Msps 14-bit Parallel 32-Pin QFN EP

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991.c.3
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	125Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±0.5V/±1V
Minimum Single Supply Voltage (V)	2.85
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.4
Typical Power Dissipation (mW)	395
Maximum Power Dissipation (mW)	468
Integral Nonlinearity Error	±5LSB
Full Scale Error	±2.5%FSR
Signal to Noise Ratio	72.4dB(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Pin Count	32
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	5
PCB changed	32
