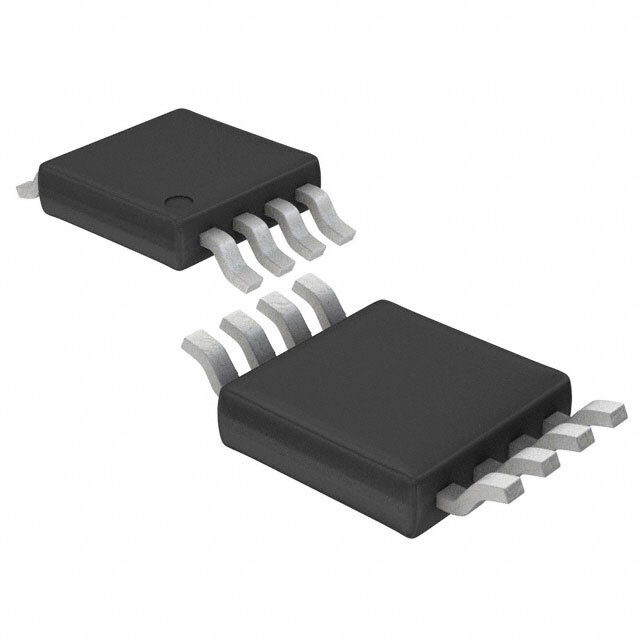

LTC2067IMS8#TRPBF

SKU: 101291

Manufacturer: Analog Devices

Op Amp Dual Auto Zero/Chopper R-R I/O 5.25V 8-Pin MSOP T/R

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Auto Zero/Chopper
Manufacturer Type	Zero Drift Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Maximum Input Offset Voltage (mV)	0.005@5V
Minimum Single Supply Voltage (V)	1.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.25
Maximum Input Offset Current (uA)	0.000035@5V
Typical Input Bias Current (uA)	0.000005@5V
Maximum Input Bias Current (uA)	0.000035@5V
Maximum Quiescent Current (mA)	0.02@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.0175@5V
Typical Input Noise Voltage Density (nV/rtHz)	80@5V
Typical Voltage Gain (dB)	140
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.035@5V
Minimum PSRR (dB)	108
Minimum CMRR (dB)	111
Minimum CMRR Range (dB)	105 to 115
Typical Gain Bandwidth Product (MHz)	0.1
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
