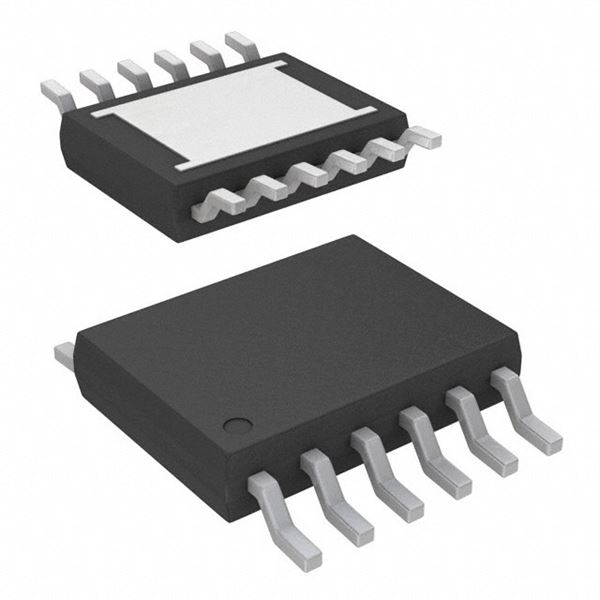

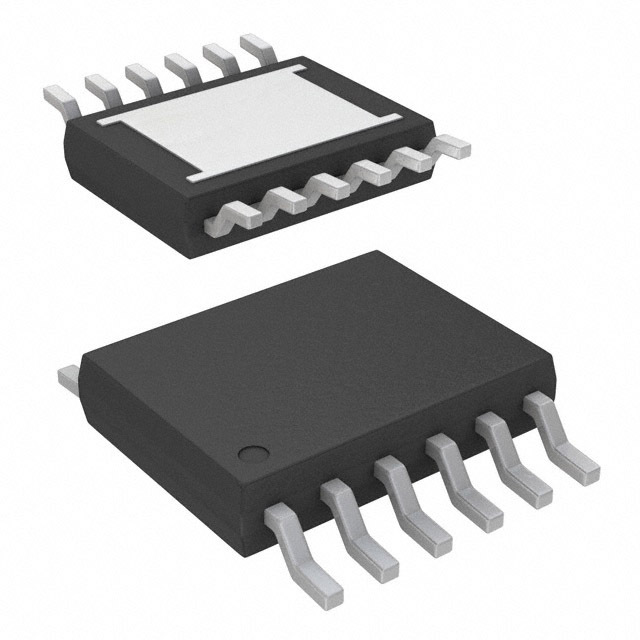

LTC2058IMSE#PBF

SKU: 19923

Manufacturer: Analog Devices

Op Amp Dual Auto Zero/Chopper R-R O/P ±18V/36V Automotive 12-Pin MSOP EP Tube

3350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Unknown
PPAP	Unknown
Type	Auto Zero/Chopper
Manufacturer Type	Zero Drift Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	0.005@±15V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2.375
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.0002@±15V
Typical Input Bias Current (uA)	0.00003@±15V
Maximum Input Bias Current (uA)	0.0001@±15V
Maximum Quiescent Current (mA)	2.4@±15V
Power Supply Type	Single
Typical Slew Rate (V/us)	1.7@±15V
Typical Input Noise Voltage Density (nV/rtHz)	9@±15V
Typical Voltage Gain (dB)	150
Typical Noninverting Input Current Noise Density (pA/rtHz)	1@±15V
Minimum PSRR (dB)	140
Minimum CMRR (dB)	138
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	2.5
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	MSOP EP
Pin Count	12
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
