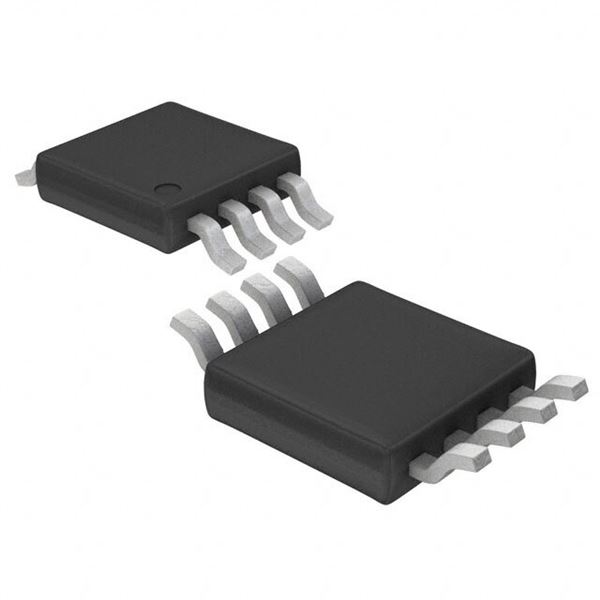

LTC2055IMS8#PBF

SKU: 76425

Manufacturer: Analog Devices

Op Amp Dual Auto Zero/Chopper R-R O/P 6V Automotive 8-Pin MSOP Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Yes
PPAP	Unknown
Type	Auto Zero/Chopper
Manufacturer Type	Zero Drift Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	0.003@5V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	6
Maximum Input Offset Current (uA)	0.000002(Typ)@5V
Typical Input Bias Current (uA)	0.000001@5V
Maximum Input Bias Current (uA)	0.00015@5V@-40C to 85C
Maximum Quiescent Current (mA)	0.3@5V@-40C to 85C
Power Supply Type	Single
Typical Slew Rate (V/us)	0.5@5V
Typical Voltage Gain (dB)	140
Minimum PSRR (dB)	120
Minimum CMRR (dB)	120
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	0.5
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
